G-Flex Grid Coupling

Hover on image above to zoom; Click to view larger image.

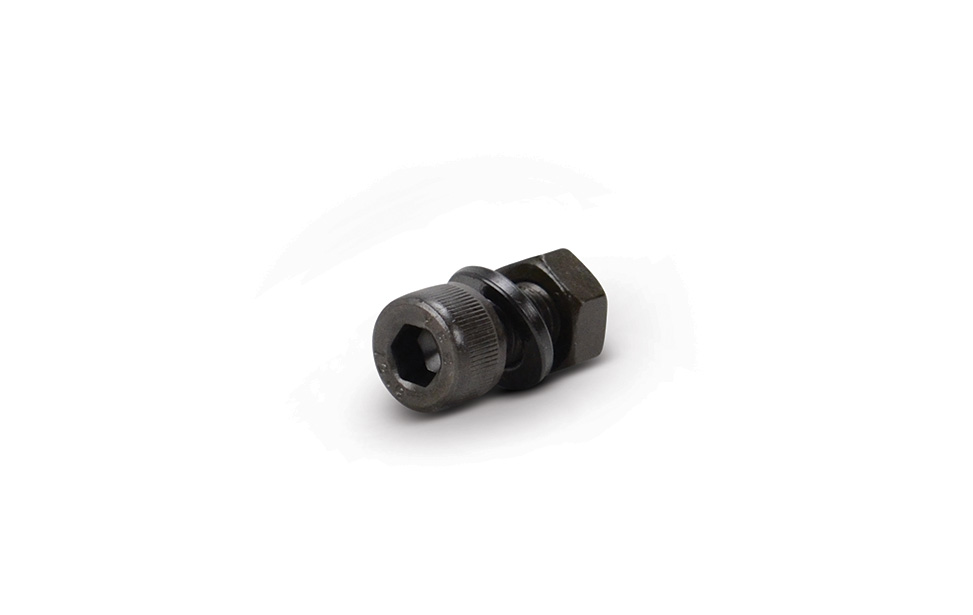

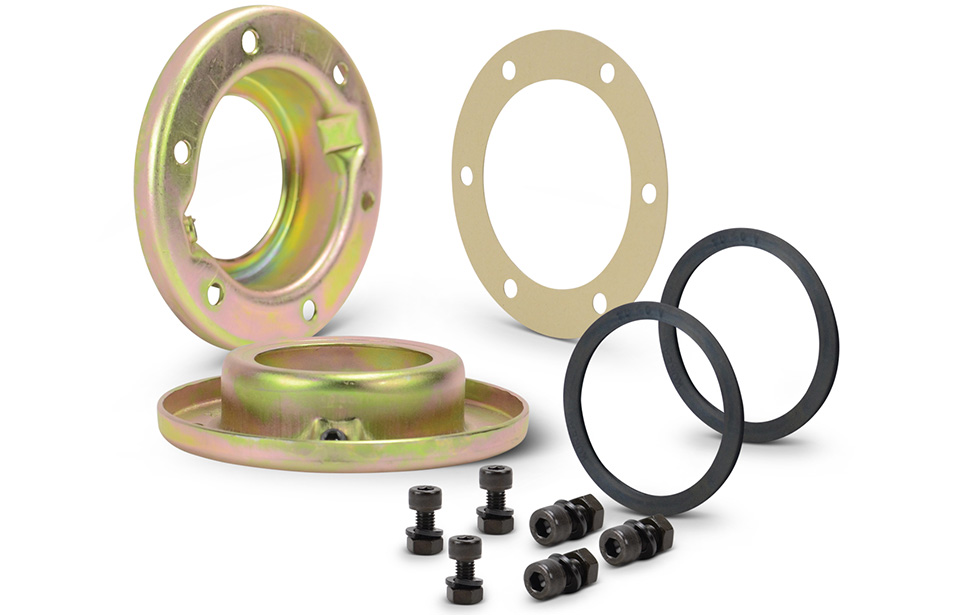

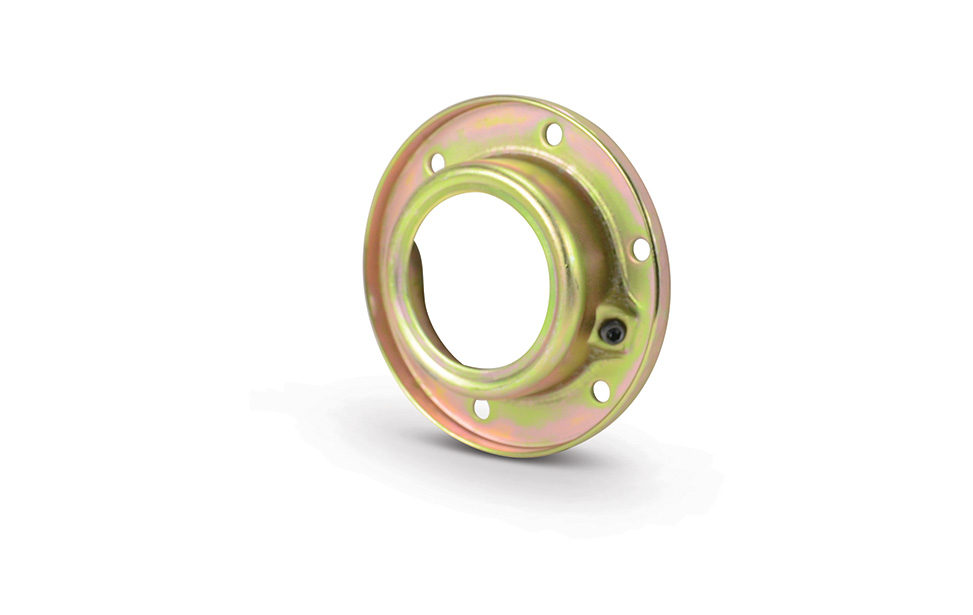

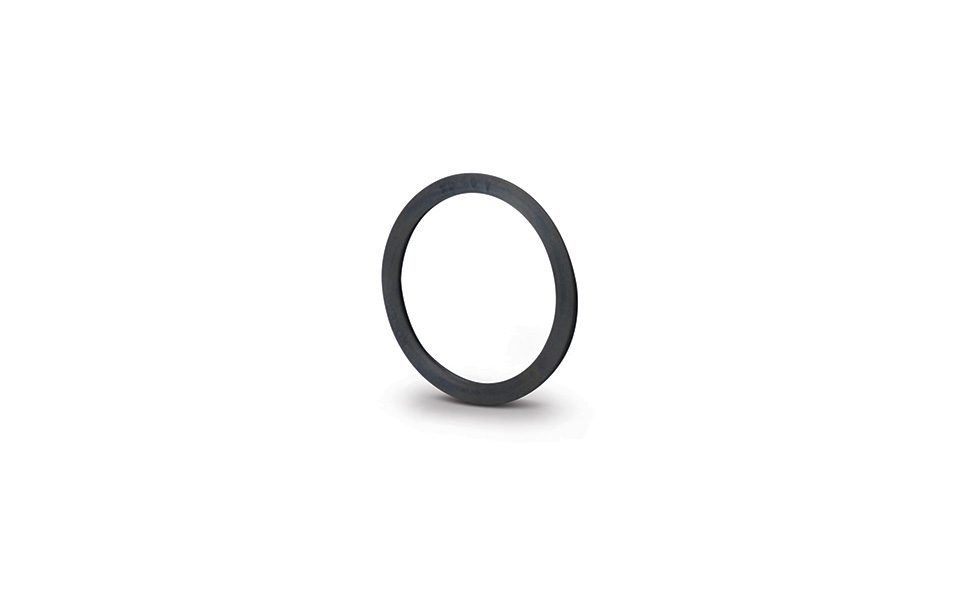

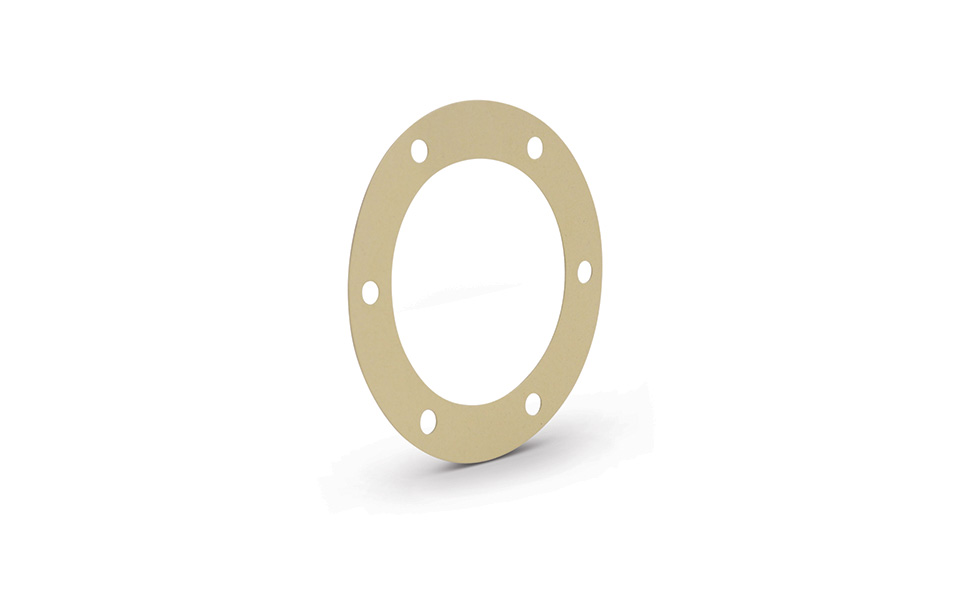

1130T20 Vertical Cover Kit for G-Flex Couplings

Model: 1130T20CK

TB Wood’s Taper Grid Coupling is the industry standard, state-of-the-art design from TB Wood’s and Bibby Turboflex, the original grid coupling manufacturer. The G-Flex 1000 / Bibby 2000 Series is an all-metal coupling that provides positive protection against the damaging effects of shock loads and vibration. Aluminum horizontal cover (T10), and all-steel vertical cover (T20) designs are available. G-Flex tapered grid couplings are an excellent choice where torsional flexibility and vibration damping are primary concerns.

Download CAD

configurator

Specifications

Related Products: 10050042
Product Family: T20CK
Part Group: Vertical Cover Kit
Coupling Size: 1130
Material Type: Steel cover; various
Torque Rating: 176,129 in-lbs
Max RPM: 2400
F Dimension: 11.18 in
H Dimension: 0.87 in
M Dimension: 5.79 in
Max Bore: 6.00 in
Coupling WR²: 3691 lb/ft²
Cover Outside Diameter (A): 14.88 in
Coupling Overall Length (B): 12.99 in
Cover Width (J): 2.97 in
Gap: 0.25 in
Coupling Weight: 254.0 lbs
Weight: 21 lbs
California Proposition 65: WARNING: Cancer- www.p65warnings.ca.gov
