G-Flex Grid Coupling

Hover on image above to zoom; Click to view larger image.

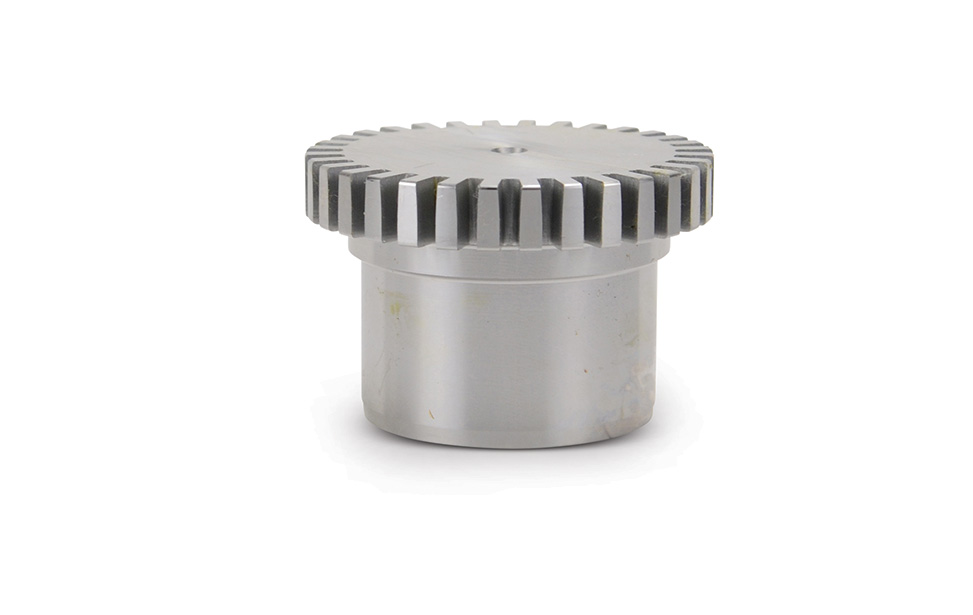

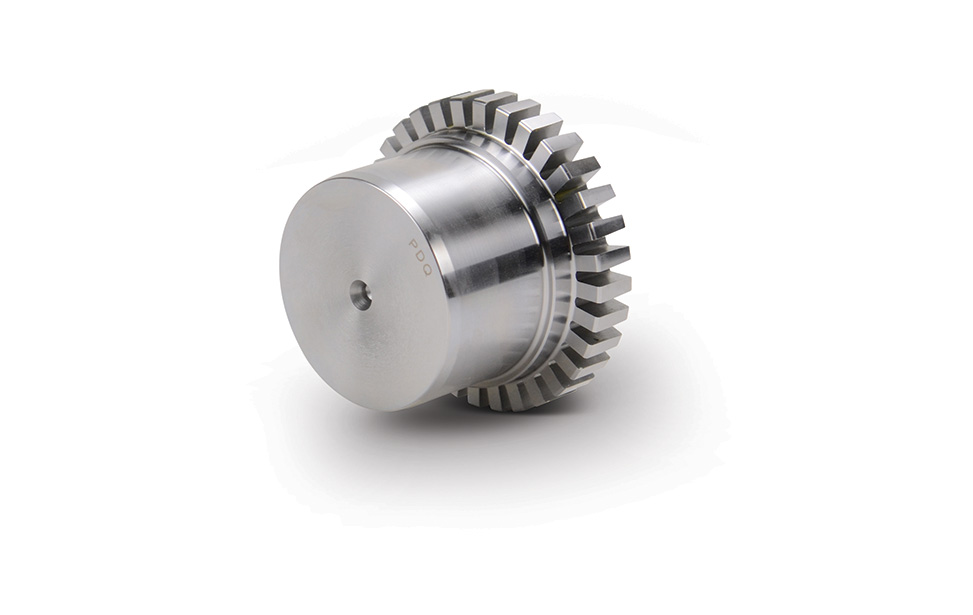

1030T X Solid G-Flex Grid Coupling Hub

Model: 1030TRB

TB Wood’s Taper Grid Coupling is the industry standard, state-of-the-art design from TB Wood’s and Bibby Turboflex, the original grid coupling manufacturer. The G-Flex 1000 / Bibby 2000 Series is an all-metal coupling that provides positive protection against the damaging effects of shock loads and vibration. Aluminum horizontal cover (T10), and all-steel vertical cover (T20) designs are available. G-Flex tapered grid couplings are an excellent choice where torsional flexibility and vibration damping are primary concerns.

Download CAD

configurator

Specifications

Related Products: 10010411
Product Family: BTS
Part Group: Grid Hub
Coupling Size: 1030
Material Type: Steel
Bore Size: Solid
Torque Rating: 1,319 in-lbs
Min Bore: 0.50 in
Max Bore: 1.38 in
Coupling WR²: 7.5 lb/ft²
Coupling Overall Length (B): 3.86 in
Hub Length Through Bore (C): 1.87 in
Hub Outside Diamer (D): 1.94 in
Gap: 0.13 in
Bore Fit: Clearance Fit
Coupling Weight: 5.3 lbs
Weight: 2 lbs
California Proposition 65: WARNING: Cancer- www.p65warnings.ca.gov
